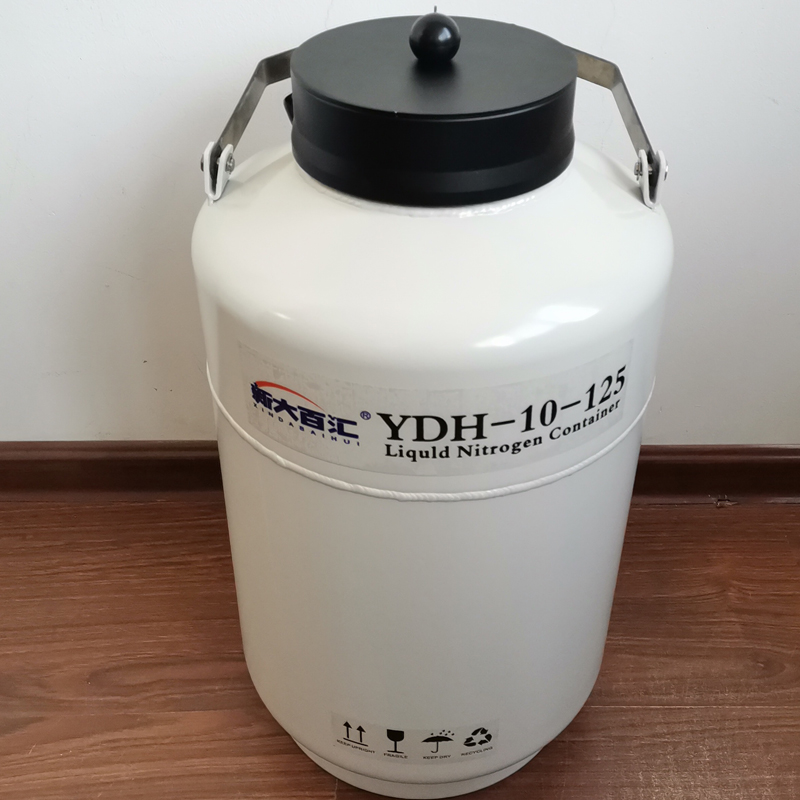

Vapor Liquid Nitrogen Tank YDH-10 Dry Shipper
share
Parameter
Capacity
：
6L/10L
Material
：
Aviation Aluminum
Caliber
：
80/125mm
Detail
A dry shipper is an insulated cryogenic flask/container that contains refrigerated liquid nitrogen absorbed into a porous lining. It is used to transport specimens

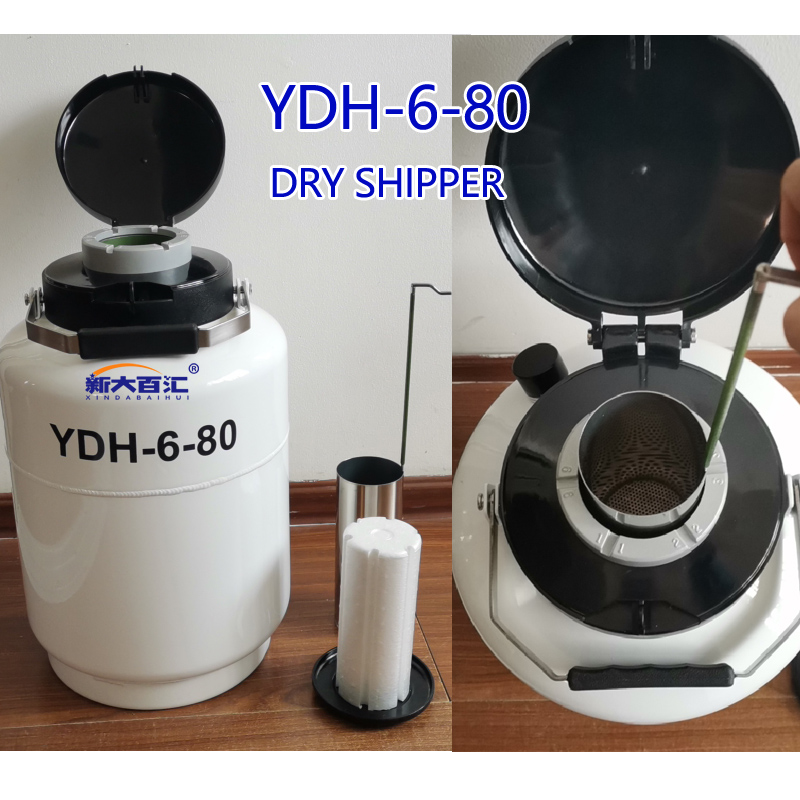

| Model | YDH-6-80 | YDH-10-125 | YDH-15-216 | YDH-25-216F | YDH-25-216 |
| Capacity (L) | 6 | 10 | 15 | 25 | 25 |
| Liquid Nitrogen Absorption (L) | 3.4 | 4.7 | 6 | 9 | 5.7 |
| Canister Size (mm) | Ø76*200 | 81*85*225 | 139*141*225 | 139*141*336 | Ø190*276 |
| 2ml Cryovial | 66 | 100 | 400 | 600 | 678 |
| Straw Capacity 0.25ml | 1065 | —— | —— | —— | 11584 |
| Straw Capacity 0.5ml | 492 | —— | —— | —— | 5456 |
| Static Evaporation Rate (L/day) | 0.28 | 0.31 | 0.71 | 0.69 | 0.81 |
| Static LN2 Holding (days) | 12 | 15 | 8.5 | 13 | 7 |
| Neck Opening (mm) | 80 | 125 | 216 | 216 | 216 |
| Overall Height (mm) | 492 | 584 | 610 | 755 | 755 |
| Outer Diameter (mm) | 300 | 300 | 396 | 396 | 396 |
| Empty Weight (kg) | 7 | 8.5 | 16.2 | 19.5 | 19.5 |
| Net Weight (kg) | 7.2 | 9.2 | 16.9 | 21.2 | 20.8 |
| Gross Weight (kg) | 10.0 | 13.0 | 21.8 | 28.5 | 25.4 |
