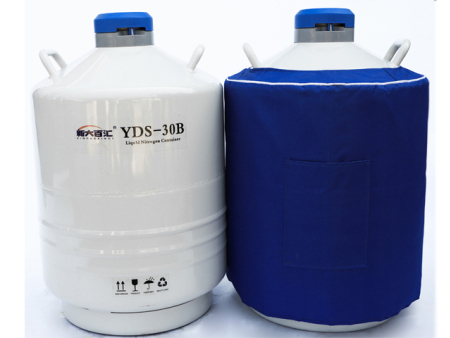

The difference between transport type liquid nitrogen tank and storage type liquid nitrogen tank is that it is equipped with shock proof design to avoid collision during transportation, which is especially suitable for mountain and grassland users. The container can stand still or transport under the condition of filling liquid nitrogen.
Advantages of transport type liquid nitrogen tank:
1. It adopts special shock proof structure design, and the material is durable and not easy to be damaged;
2. The product neck tube has low thermal conductivity and high mechanical strength;
3. The daily evaporation rate of liquid nitrogen is low
Technical parameters of transport type liquid nitrogen tank:
Product model | volume(L) | Neck diameter(mm) | external diameter(mm) | height (mm) | Empty weight (Kg) | Storage days of liquid nitrogen(d) | Liquid nitrogen evaporation(L/d) |
YDS-10B | 11 | 50 | 305 | 550 | 6.2 | 52 | 0.208 |
YDS-15B | 16 | 50 | 365 | 600 | 9 | 76 | 0.208 |
YDS-30B | 32 | 50 | 446 | 670 | 14.5 | 159 | 0.24 |
YDS-50B | 50 | 50 | 500 | 805 | 21 | 208 | 0.24 |
YDS-50B-125 | 50 | 125 | 500 | 805 | 21.5 | 105 | 0.476 |
Drying and washing process of transport type liquid nitrogen tank:
To keep the liquid nitrogen tank clean, clean 1-2 times a year. The cleaning steps are as follows:
First, take out the cylinder from the container. After the container is placed for two days, when the temperature in the container reaches zero, inject 40-50 ℃ warm water, and then wipe it with clean dust-free cloth; then wash it with clean water, invert the container and drain it; if it is not in urgent use, it can be dried by natural air; when blowing with hot air, it should not be too hot, and the temperature of hot air is between 40-50 ℃.
